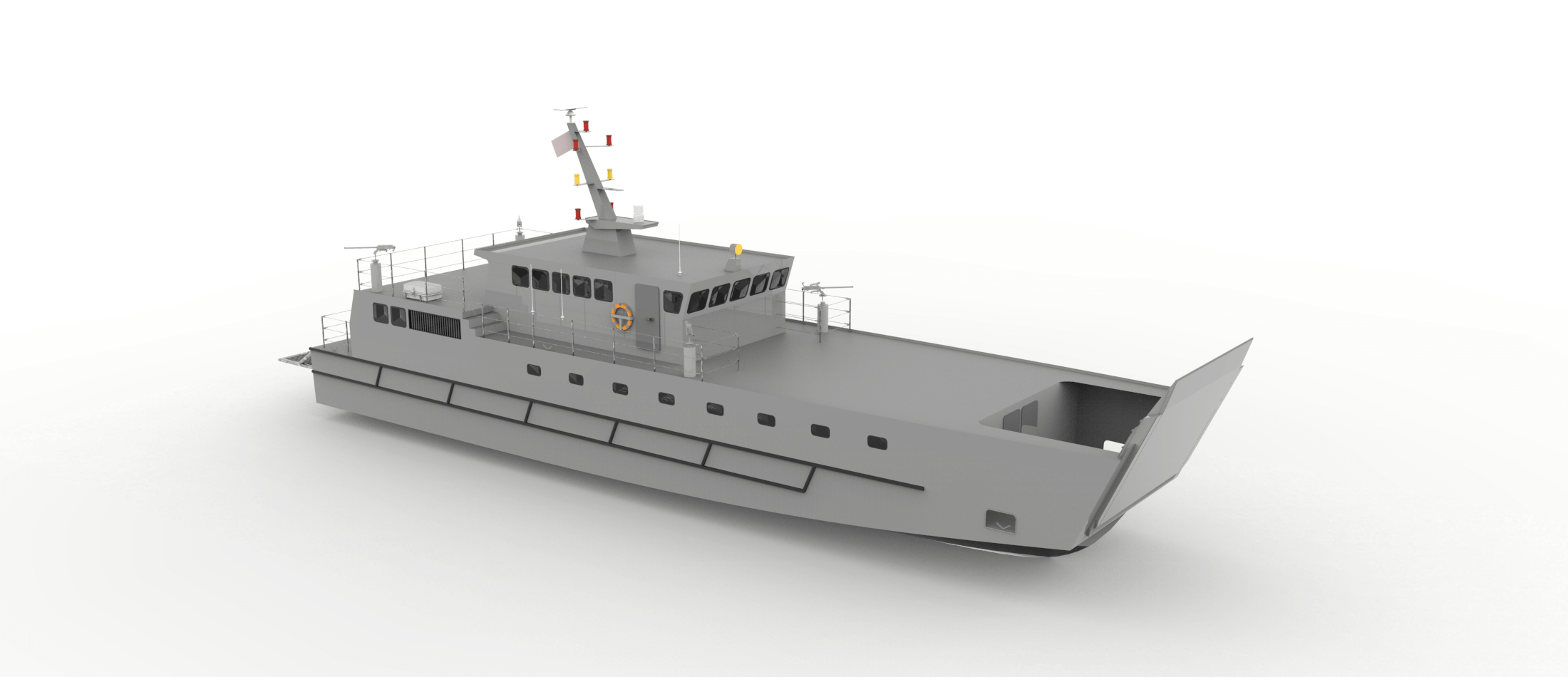

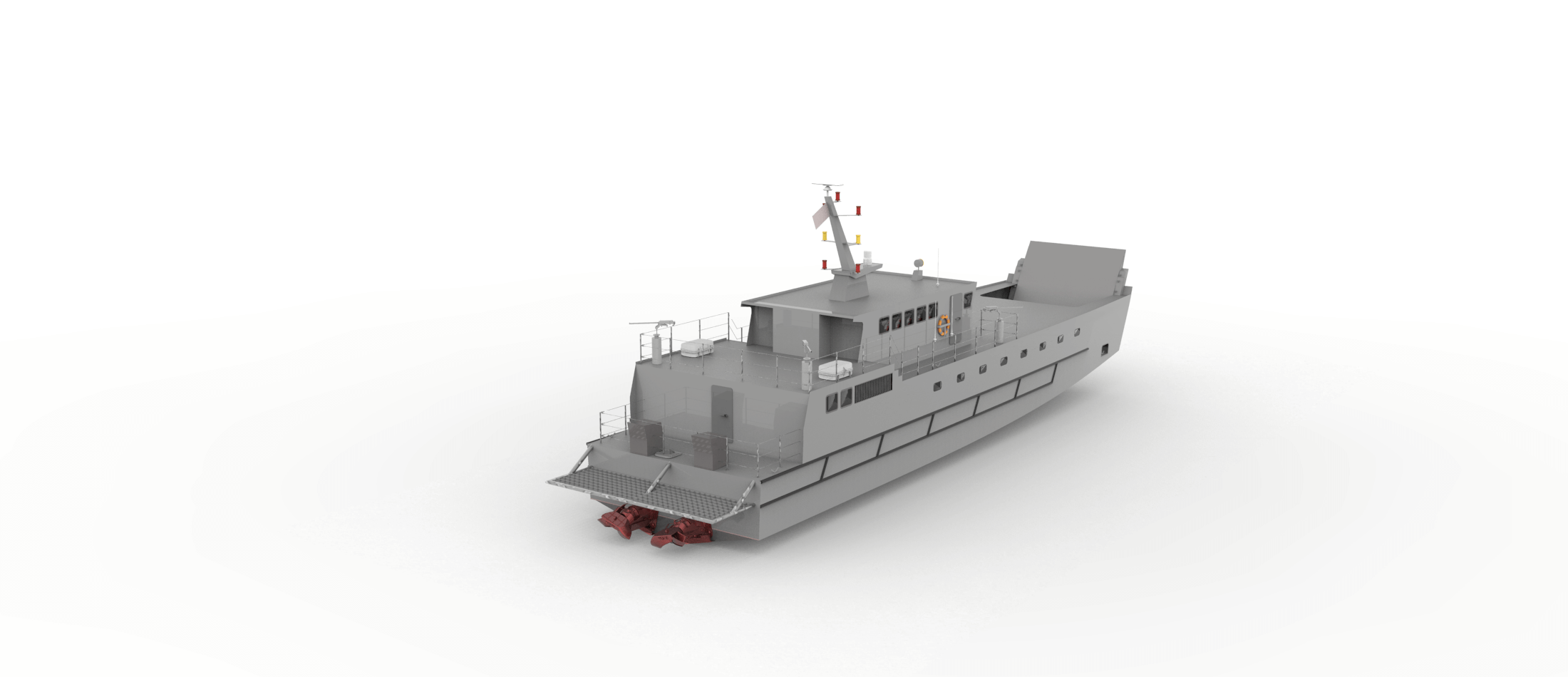

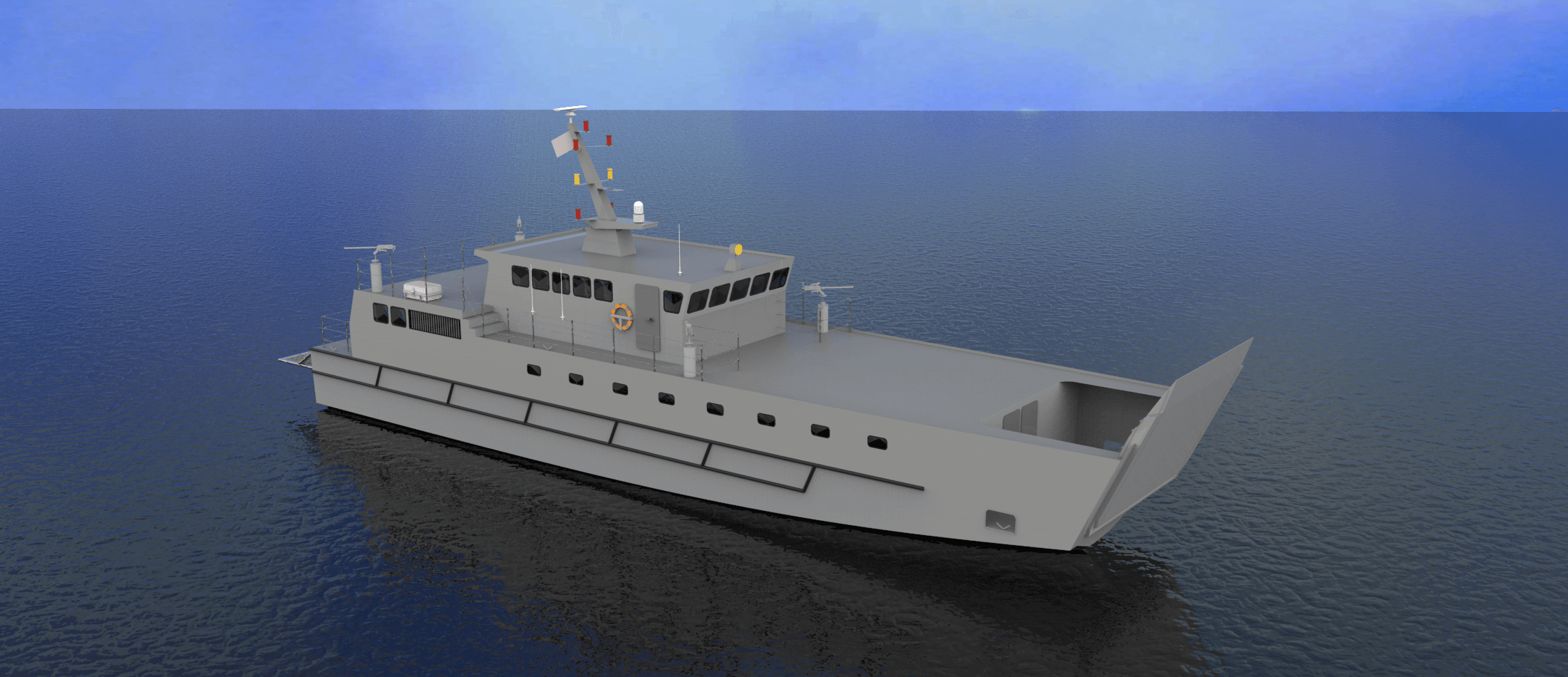

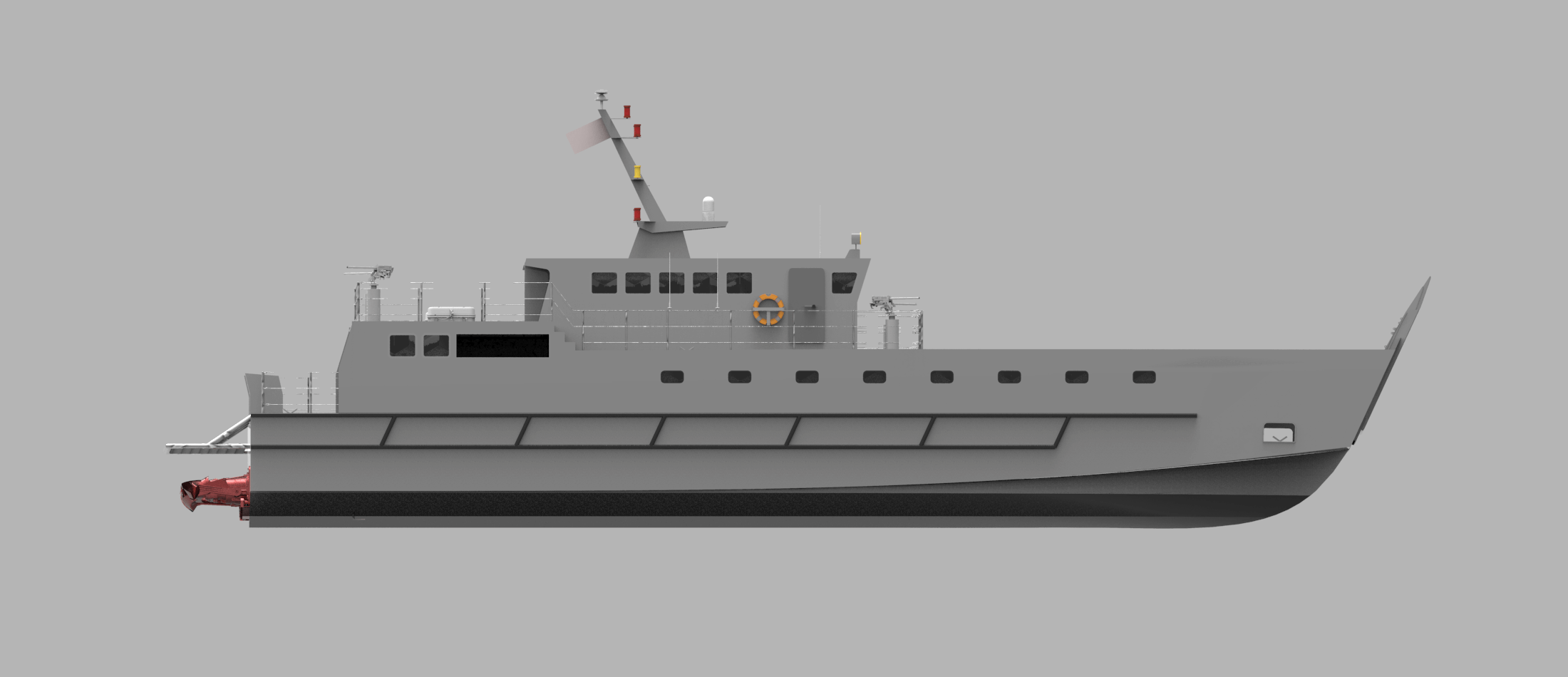

Landing Craft Utility Ambulance (LCU Ambulance)
Displacement:
77.16 ton
Length Overall:
29.95 m
Beam:
7.0 m
Draught:
0.85 m
Description

The Landing Craft Utility Ambulance (LCU Ambulance) is specifically designed to conduct medical evacuation (MEDEVAC) operations for marines during amphibious landing missions. This high-speed vessel, equipped with two water jets, can achieve speeds of up to 41 knots. It features advanced emergency medical equipment and is staffed by a medical team consisting of one field doctor and two medical personnel. The marine ambulance is intended to facilitate transport between the amphibious beach and a Landing Helicopter Dock (LHD) equipped with onboard hospital facilities.

Propulsion System
2 x 1790 kW Diesel Engines
2 x Waterjets
Speed
Speed: 41 knots (Full Load)
Complement
Crew: 4
Doctor: 1
Medicals: 2
Amphibious Personnel : 10 Troops
Electric Power
Gensets 69 kW / 86 kVA
Capabilities
Decompression Chamber
Transportable Recompression Chamber
4 Patient Beds
Navigation
Radar
GPS
Echo Sounder
Magnetic Compass
Observation Camera
Navigation Lights
Night & Day Vision
Communication
Marine VHF
VHF Tactical Radio
Intercom
Weapons
4 x Mechanic Gun (7.62 mm)
